Sprocket Hardware kit
Made in The USA Not China Garbage. Kit Includes
- Six 6mm X 20mm Long Bolts Made With Black Hardened Steel Socket heads.
- Six 6mm Nuts

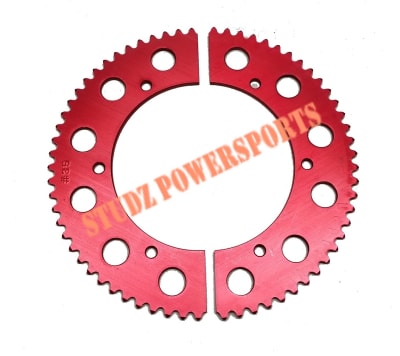

#35 Chain Split Sprocket 53-78 Tooth
Two Piece Split Sprocket. Made From A High Quality Alloy Compound That Guarantees Durability. Precision Cut Tooth Design Reduces Friction At High Speeds Which Results In Smooth Chain Run And High Output.
(Split Sprockets May Be Red Or Silver Depending On Inventory. We Normally Have The Red Ones)
6 bolt pattern measuring 5 1/4", center hole is 4 9/16".
We Recommend the Sprocket Hardware kit for this Sprocket
Manco Drive Sprocket 60t #35
60t-Most commonly used sprocket for Manco single wheel drive go-karts that use 5" tires on the rear.
Replacement Sprockets, same bolt pattern but larger sprockets
MA1100 72t- Replacement for the 60t spkt, gives more torque and a little less top speed.
MA9986 80t- Used on Manco single wheel drive go-karts using 6" tires on the rear.
Great For Running A Third Bearing On Mini Bikes Like Ruttmann Etc.
- Overall Diameter - 7 1/4"
- Center hole diameter - 1 3/8"
- Bolt pattern - 2 1/8"

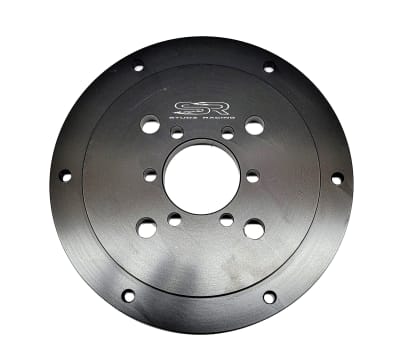

Universal Sprocket Adapter
Current stock is all black.
This sprocket adapter fits the Monster Moto 80cc/105cc, Motovox, Doodlebug and Baja mini bikes with the 6 bolt hole pattern on the wheel. It will also fit Coleman CT200, Trailmaster MB200, Huricane, And Baja Warrior Or any wheel that has a 2 7/8" hole pattern for the existing sprocket. Great for converting your mini bike or gokart to the split sprockets for quick and cheap gear ratio changes. This adapter is precision made on a CNC so it will be a really tight fit. If there is any paint on your wheel you may have to file the paint off but this is what you want so your sprocket will run true!
- Made from 6061-T6 aluminum
- OD: 5.875"
- Center Hole: 1.47"
- Machined Shoulder: 4.562"
- Outside Hole pattern for sprocket: 5.25" with 1/4-28 threaded holes
- 4 Hole pattern: 2.875"
- 6 Hole pattern: 1.968"
- 6 1/4-28 bolts included
47 Tooth #40 Pitch Cushman Militarily Grade Sprocket
NOS Cushman motorcycle sprocket, Military ordnance stock no. 33-260. It is 47 teeth. ID is 4.945". OD is 7-13/16 tooth tip to tooth tip.
Great Heavy Duty Sprocket For Anyone Building Their Own Go Kart. (Can Be Re-drilled For Other Applications And uses)
Storm, Doodle Bug, Motovox, 6 Hole 420 Sprocket
- Inside Hole Diameter - approx. 1.471"
- 6 Hole Bolt Pattern - approx. 1.965"
- Bolt Hole - 1/4"
- Pitch - 1/2" to fit 40/41/420 Chain
NOTE- Does not work with Mega / Monster 212cc only works with Monster / Mega 80 and 105 models
- 54 Tooth - 8.875"
- 60 Tooth - 9.875"
Monster Moto- 80/105 models only
Baja, Coleman, MB200, 420 Sprocket 38-72 Tooth Sprocket
4 Hole Sprocket For 420 Chain. Can Be Used On Other Applications Such as TrailMaster go Karts. Choose Tooth Count Above In Options Menu.
- Coleman Mini Bikes
- TrailMaster MB-200
- Baja Warrior
- and similar mini bikes with 8" wheels.
- Does not fit a standard 6" wheel, the 6" wheel has a 2 7/8" bolt pattern
- 4 holes 3/8"
- 3.150" Bolt Circle
- 1.580" Center hole (Standard Size Bearings)
- 60 Tooth - 9 7/8" Diameter, Steel Sprocket
- 72 Tooth - 11 3/4" Diameter, Steel Sprocket
