Tillotson 196-212-225 Non-Hemi Oil Fill Dip Stick 10mm, 1.25 Pitch - Cable Adjuster #35 Block Chain Breaker Tool Replacement Pin
Oil Fill Dip Stick Measures The Oil Level Of Your Tillotson, Predator, Or Clone Engine.
Most Racing Engines Do Not Have A Low Oil Sensor Or Removed To Prevent The Engine From Shutting. Your Oil Should Be Checked And Changed Frequently. Use The Dip Stick To Measure The Oil Level And Prevent Oil Starvation.
10mm Cable Adjuster for Mini Bike Throttles. This Is the Replacement Pin For The Block Style Chain Breaker #35 Chain.
Valve Lapping Tool Socket for ARC Billet GX200 & Predator Rods `1/4" 12pt, 3/8" Push Rod/Tube Cutter
Valve Lapping Tool
Our Price: $6.49
Push Rod/Tube Cutter
Our Price: $7.49
  • Suction Cup Style
  • 15/16" and 1-1/16" Diameter Cups
  • Fits All Small Engines

*Color May Vary, Photo is only for Reference*
`1/4" 12pt, 3/8" Drive for ARC Rod Bolts. For All Small Block Billet Rods. Mini Tube Cutter great for the use on cut to length Push Rods in Small and Big Block
Ratio Rite Mixing Cup RED LINE SYNTHETIC OIL FUNNEL Permatex Valve Grinding Compound, 3 oz.
Ratio Rite Mixing Cup
Our Price: $7.99
Get a perfect mix every time. Fill your polypropylene Ratio RiteTM to the precalibrated ratio mark and pour into gas.
  • Ratios are from 16:1 to 70:1 for 1, 1½, 2, 2½ gallons
  • Calibrations also include oz., c.c.’s and pints on the opposite side for transmission oil, fork oil, etc
  • Total capacity 24 oz.
  • No figuring
  • No guessing
  • No mistakes
Works great for adding fuel to Da Boss And MB200 Trail Master Mini Bikes. Fills From Vertical And Horizontal
  • That funnel that works
  • Rotate around to get into those extremely difficult areas
  • Works with all fluids
Permatex Valve Grinding Compound aids valve grinding and seating operations to remove burrs, surface defects, carbon, gum and corrosion. This compound mixes with water to form an easy-to-use paste and can be used for lapping and grinding chromium.
230 Economy Feeler Gage, 26-Leaf with Metric and English Units Cable Luber Tire Iron/Spoon 11 Inch, Set of 2
Cable Luber
Our Price: $11.99
  • General Tools Feeler Gages are used for adjusting and gauging spark plugs, distributor points and valve clearances, or any other instance of measuring the space between two parts
  • This convenient and popular Economy Series Gages provide spot-on accuracy at a competitive price
  • This 26"Leaf Economy Feeler gage features 3 inch straight leaves etched with both Metric and English units, ranging from .0015" to .025" and .037mm to .65mm
  • The set is housed in a protective holder to preserve the trueness of the leaf edges
Cable Luber used to inject lubricant into cable housing. Clamps over housing and wire allowing an aerosol can to be connected. Once lube runs out the far end the cable is lubricated.
Motion Pro Tire Removal Spoons. Set Of Two
  • 11 inch size provides excellent leverage
  • One end is flat and other end is curved
  • Cold forged steel
  • Heat treated for strength and durability
REPLACEMENT PINS FOR #428 And #420 CHAIN TOOL 10 pc. Mini Hex Shank Drill Bit Set For Main Jets. 038" to.067" (#60 to #51) 20 pc. Mini Drill Bit Set For Main Jets. 038" to.067" (#80 to #61)
These Are the Replacement Pins For The Block Style Chain Breaker #420 And #428 Chain.
Size range .038" to.067" (#51 to #60)
  • 1/4" quick-change hex shank -fast bit swaps, fit impact drivers, extensions
  • Hard-to-find mini sizes #51, 52, 53, 54, 55, 56, 57, 58, 59, & 60
  • Durable high-speed steel for cutting power & strength
  • PVC sleeve to keep bits organized & easy to identify
Drill Bit Set For Porting Jets.
Size range .0135" to .0390" (#80 to #61)
Includes micro drill bit sizes:
  • #80 (.0135")
  • #79 (.0145")
  • #78 (.0160")
  • #77 (.0180")
  • #76 (.0200")
  • #75 (.0210")
  • #74 (.0225")
  • #73 (.0240")
  • #72 (.0250")
  • #71 (.0260")
  • #70 (.0280")
  • #69 (.0292")
  • #68 (.0310")
  • #67 (.0320")
  • #66 (.0330")
  • #65 (.0350")
  • #64 (.0360")
  • #63 (.0370")
  • #62 (.0380")
  • #61 (.0390")
Piston Ring Compressor Ring Compressor, Aluminum Block Style Chain Breaker Tool #35 Chain
Piston Ring Compressor
Our Price: $18.99
Ring Compressor, Aluminum
Our Price: $19.99
Make Installing Pistons easier With A Piston Ring Compression Tool. For cylinders with 1-1/2" to 3" diameter.

Made of blued spring steel.

Available for GX160 and GX200 standard bore and 212 Predators. This is the best and easiest compressor to use. Once you use this, you will never use a band or adjustable compressor again.

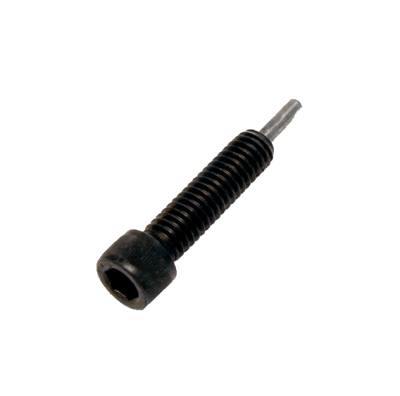

For #35 Chain. Can Resemble Chain without Master Link. Uses Chain Breaker Replacement Pin #35 Block Chain Breaker Replacement Pin.
ARC 7250 Flywheel Puller Tool MOTION PRO TIRE IRON/SPOON CURVED 15" Heavy Duty Adjustable Pushrod tool - GX160 & GX200, 5.05 to 5.60"

This flywheel puller is designed for those who don't want to use the "knocker" method to remove their flywheel.

Works with:

  • ALL ARC Flywheels with Steel Adjustable Timing Hubs
  • PVL flywheel for clone
  • Raceseng Flywheels
  • ARC flywheels that do not have the steel center hub will be drilled and tapped for this puller as a running change in 2013.
  • New for 2015 the redisigned flywheel puller will work with the 2015 redisighed 6602 flywheels

To use, install the threaded rods into clean and lubricated puller holes on hub or flywheel face. Be sure to thread the rods in fully. Slide the puller block over the threaded rods and screw the nuts down evenly. Tighten the nuts evenly back and forth in 1/2 turn increments until the flywheel pulls off. Stubborn flywheels may require that you hit the center of the puller block with a hammer once significant pressure is applied by tightening the nuts. Be careful not to strike the threaded rods (use a spacer if necessary) and NEVER hit the flywheel itself with a hammer.
Heat as low as 300° will damage the rare-earth magnet in flywheels, so don't use a torch!
Studz is not responsible for any damage you cause to any flywheel removed with this tool, so be careful!

Motion Pro Tire Removal Spoon. 15" Heavy Duty
  • Special design for easier tire changing
  • Installation end will not abuse tire bead
  • Less risk of damaging tube or rim
  • Drop forged steel
  • Special removal end will force bead down into rim drop center
  • An absolute must for manual tire changing
  • Measures 16” x 1 x 1¾”

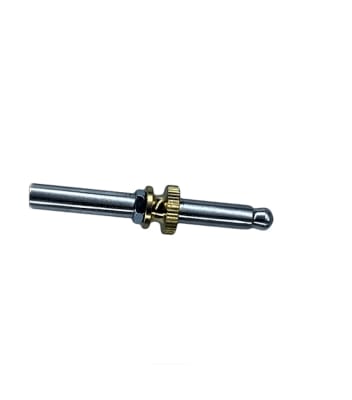

Adjustable Push Rod tool for checking for proper Pushrod length.
Adjust from 5.05" to 5.60"
Must be used with stock springs.
--------DO NOT RUN IN MOTOR!-----------
Roller Chain Breaker Tool Adjustable Pushrod tool - GX390, 6.25" to 6.75" Adjustable Pushrod tool - GX270, 5.25" to 5.75"
Roller Chain Breaker Tool
Our Price: $29.99
Sale Price: $23.99
Savings: $6.00
Made For #35 thru #50 chain. Please Watch the Video Below For Our Video On How To Use This Tool Adjustable Push Rod tool for checking for proper Pushrod length.
Adjust from 6.25" to 6.75"
Must be used with stock springs.
--------DO NOT RUN IN MOTOR!-----------
Adjustable Push Rod tool for checking for proper Pushrod length.
Adjust from 5.25" to 5.75"
Must be used with stock springs.

--------DO NOT RUN IN MOTOR!-----------
Adjustable Pushrod tool - 420, 6.25" to 6.75" DRAINZIT, 10mm Oil Drain Extension (GX120 - GX200, 6.5 OHV, & 212 Predator) DRAINZIT, 12mm Oil Drain Extension (GX240 - GX390, & 420cc Predator)
Adjustable Push Rod tool for checking for proper Pushrod length.
Adjust from 6.75" to 7.25"
Must be used with stock springs.
--------DO NOT RUN IN MOTOR!-----------
Oil Drain Extension For Small Block Engines ( GX120 - GX200, 6.5 Chinese OHV, & 212 Predator)
Change Your Oil Without The Mess!!! Dranzit is Easy To Install, Simple To Use, and Requires NO Engine Modification!
  • 14" Long, 10mm Drain Port
  • Can Be Used For Nearly All Equipment Powered By A Small Engine. EX: Pressure Washers, Generators, Pumps / Sprayers, Compressors, Go-Karts, Lawn Mowers, and More!
  • FITS: GX120 - GX200, 6.5 Chinese OHV, and 212 Predators
  • WILL NOT FIT: 8HP and Up Engines (GX240, 390, 420 etc.)
*Click Here For Oil Drain Extension That Fits 8HP & Up Engines*
Oil Drain Extension For Big Block Engines (GX240 - GX390, and 420cc Predators)
Change Your Oil Without The Mess!!! Drainzit is Easy to Install, Simple To Use, and Requires NO Engine Modification!
  • 14" Long, 12mm Drain Port
  • May Be Used On Machines Powered By Small Engines. Ex: Pressure Washers, Generators, Pumps / Sprayers, Compressors, Go-Karts, Lawn Mowers, & More.
  • FITS: Big Block Engines (GX240 - GX390, & 420cc Predators)
  • WILL NOT FIT: GX120 - GX200, 212 Predators, & Chinese 6.5 OHVs
*Picture For Reference. Color May Vary.*

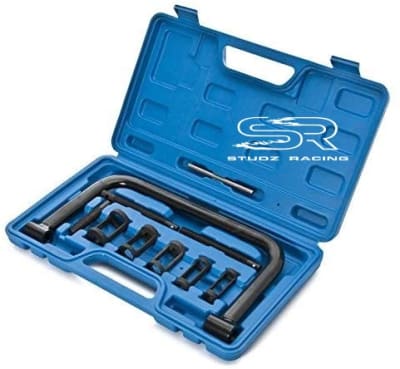

Premium Heavy Duty Chain Breaker Tool (Made In The USA) 5 Gallon Utility Container Solid Valve Spring Compressor Tool C Clamp Service Set-10 Pieces
Heavy Duty Chain Breaker tool For #25 Through #60 Chain. 06B Through 12B, 1/4" Pitch Through 3/4" Pitch. Removes Link From Pin Forged Steel Jaws. Press Out Tip Made Of Tool Steel. Keep Screw Greased. Extra large lid with O-ring gasket. Made from high impact polyethylene. Exceeds recommended D.O.T. Standards. Adjustable screw-on vent. Containers are accurately graduated in gallons and liters. 10.5" x 10.5" x 21". 5 gallon capacity. Features: Extra large lid with O-ring gasket Made from high impact polyethylene Exceeds recommended D.O.T. Standards Adjustable screw-on vent Containers are accurately graduated in gallons and liters Item Dimensions: 23" L x 10" W x 10" H
Our Spring Compressor Pusher Tool Set allows you remove and compress valve springs on most cylinder heads more conveniently. We use the newest construction with qualified material. All parts are made of solid steel material, which are more sturdy and durable. Multiple adapters and pushers satisfy different needs. The Valve Spring Remover Compressor Tool Kit is what you need!
Package Includes:
  • 1 x Spring Compressor "C" Clamp
  • 5 x Adapters
  • 3 x Extension Screws
  • 1 x Compression Bar
  • Complete 10 pcs parts are well packed and assorted in a plastic box for convenient storage and carry.Color of box may vary
