#35 Chain Split Sprocket 53 -78 Tooth Azusa Steel Sprocket 60T #35 Chain (5-1/4" Bolt Circle) 9338 Manco 60T Live Axle Sprocket For #41/420/40 Chain, 6 Bolt Pattern Measuring 5 1/4"
Two Piece Split Sprocket. Made From A High Quality Alloy Compound That Guarantees Durability. Precision Cut Tooth Design Reduces Friction At High Speeds Which Results In Smooth Chain Run And High Output.
(Split Sprockets May Be Red Or Silver Depending On Inventory. We Normally Have The Red Ones)
Specs:
6 bolt pattern measuring 5 1/4", center hole is 4 9/16".
We Recommend the
Sprocket Hardware kit for this Sprocket

Azusa Sprocket 60T #35 Chain.
  • Bolt Circle: 5-1/4"
  • Bolt Holes: 5/16" (6)
  • Bore: approx. 4-15/16"
  • Pattern: P5245
60T Live Axle Sprocket for #35 chain, 6 bolt pattern measuring 5 1/4", center hole is 4 9/16", outer diameter is 7 3/8". Fits 9338 manco part number 9338
We Recommend the
Sprocket Hardware kit For This Sprocket
Manco 54T Live Axle Sprocket for #41/420/40 chain, 6 bolt pattern measuring 5 1/4" Manco 48T  Live Axle Sprocket for #41/420/40 chain Split Sprocket Adapter For Tristar Wheels
54T Live Axle Sprocket for #35 chain, 6 bolt pattern measuring 5 1/4", center hole is 4 9/16", outer diameter is 7 3/8". Fits 9338 manco
We recommend The
Sprocket Hardware kit For Use With This Sprocket
48T - Live Axle Sprocket for #41/420/40 chain 48T - Live Axle Sprocket for #41/420/40 chain, 6 bolt pattern measuring 5 1/4", center hole is 4 9/16", outer diameter is 8"
We Recommend The
Sprocket Hardware kit For this Sprocket
4-1/2" Sprocket Adapter With Flange, machined on the outside for a band brake. Fits Tristar wheels. Has a standard 6 bolt pattern for aluminum split sprockets. Great for Split Sprockets We Recommend The Sprocket Hardware kit For This Adapter
The three bolt patterns are as follows:
  • 3 holes (5/16") on a 3.75" Bolt Circle
  • 4 holes (1/4") on a 3.75" Bolt Circle
  • 4 holes (1/4") on on a 3.228" Bolt Circle (these holes are a bit differently spaced to accommodate the four holes on the mini-hubs AZ_2561 / AZ_2568 / AZ_2565 ( See Example Rim Pictured above in the Thumbnail Pics)

Azusa Steel Sprocket 72T #35 Chain (5-1/4" Bolt Circle) 9" Aluminum Sprocket Guard, Black Anodized 60 Tooth #35 Tooth Steel Blank Sprocket ( Drill your Own Hole Pattern)
Azusa Sprocket 72T #35 Chain.
  • Bolt Circle: 5-1/4"
  • Bolt Holes: 5/16" (6)
  • Bore: approx. 4-15/16"
A sprocket guard is a must-have! This guard keeps the chain from rolling off of the sprocket. After all, to win the race, you must first finish the race.
Product Specifications:
  • Black anodized
  • Aluminum four piece design
  • 9" diameter
  • Thickness per guard is approximately 1/16"
Have Something Unique That You Just Cant Find A Sprocket For? Studz Has You Covered! This Sprocket is Great For Drilling Your own Wholes To Get The Exact Bolt/Hole Pattern You Need.
  • 60Tooth
  • #35 Chain
  • 1-3/8 Bore Size For Standard Bearings
Storm, Doodle Bug, Motovox,  6 Hole 60 Tooth 420 Sprocket Steel Plate Sprocket 35C 72T 47 Tooth #40 Pitch Cushman Militarily Grade Sprocket
Storm, Doodle Bug, Motovox, 6 Hole 60 Tooth 420 Sprocket
Our Price: $31.99
Sale Price: $24.99
Savings: $7.00
  • Inside Hole Diameter - approx. 1.471"
  • 6 Hole Bolt Pattern - approx. 1.965"
  • Bolt Hole - 1/4"
  • Pitch - 1/2" to fit 40/41/420 Chain
NOTE- Does not work with Mega / Monster 212cc only works with Monster / Mega 80 and 105 models
Overall Diameter
  • 60 Tooth - 9.875"
Fits
Doodle Bug
Monster Moto- 80/105 models only
Moto Vox
Baja
Storm

These sprockets are made of heavy gauge steel for long lasting life. To be used on 35 chain with 2" center hole and has popular four bolt hole Indus pattern with mounting holes 2" apart. Works Great With Martin Offset Wheel Hub 5/8' High Speed Bearing

  • CHAIN TYPE: NO. 35
  • NO. OF TEETH: 72
  • MOUNTING HOLES: 2" APART
  • OD: 8-3/4"
  • C. H. DIA: 2"
NOS Cushman motorcycle sprocket, Military ordnance stock no. 33-260. It is 47 teeth. ID is 4.945". OD is 7-13/16 tooth tip to tooth tip.
Great Heavy Duty Sprocket For Anyone Building Their Own Go Kart. (Can Be Re-drilled For Other Applications And uses)
Original  Mega Moto Steel Sprocket 75T, #35 Chain 72 Tooth #35 Tooth Steel Blank Sprocket ( Drill your Own Hole Pattern) Manco 60 Tooth #420 Chain Sprocket (Allows you to run 420 Chain on your Manco)

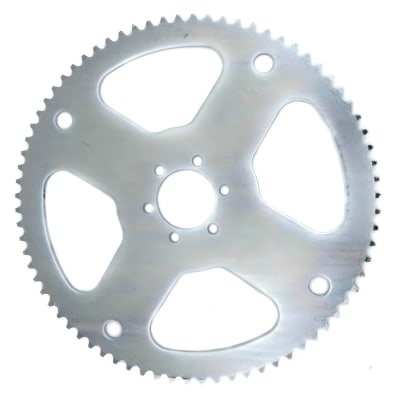

Original Mega Moto 75 Tooth Steel Sprocket For #35 Chain. Also Fits Motovox, Doodlebug, And Mega Moto. Have Something Unique That You Just Cant Find A Sprocket For? Studz Has You Covered! This Sprocket is Great For Drilling Your own Wholes To Get The Exact Bolt/Hole Pattern You Need.
  • 72Tooth
  • #35 Chain
  • 1-3/8 Bore Size For Standard Bearings
Allows you to run Stronger 420 Chain On Your Manco Mini bike. Manco 60 Tooth #420 Chain Sprocket. 6 Bolt Pattern. Can Also Be Used As A Universal Sprocket Because of Bolt Pattern. Fits MOST Manco Single Wheel Drive Mini Bikes.
Baja, Coleman, Trailmaster MB200 / MB200x, #420 Chain 34-72 Tooth Sprocket 60Tooth Steel Ruttmann Style Sprocket #35 Chain BRAKE DRUM, 4-1/2″ & #35 60 TOOTH SPROCKET, MACHINED ID, ZINC PLATED
Four Hole Sprocket For 420 Chain. Can Be Used On Other Applications Such as Trailmaster Go Karts. Must Select A Tooth Count In Options Menu.

Fits:
  • Coleman Mini Bikes
  • Trailmaster MB-200
  • Trailmaster MB-200x
  • Baja Warrior
  • Similar Mini Bikes With 8" Wheels.
  • DOES NOT Fit A Standard 6" Wheel, The 6" Wheel Has A 2 7/8" Bolt Pattern
Dimensions:
  • 4 holes 3/8"
  • 3.150" Bolt Circle
  • 40mm Bore Size,1.580" Center hole (Standard Size Bearings)
  • 60 Tooth - 9 7/8" Diameter, Steel Sprocket
  • 72 Tooth - 11 3/4" Diameter, Steel Sprocket
    Notes:
  • 34 Tooth & 38 Tooth Recommended For TAV Only
  • 34 Tooth Sprocket Has A 1-1/2" Bore
  • Limited QTY Available On The 34t Sprocket
Ruttmann Style 60 Tooth 35 Chain Sprocket With Lightning Holes. Center Bore 1 3/8. Great For 3rd Bearing. 4 Bolt 2-1/8 Spacing. Precision stamped, one-piece #35 chain, 60 tooth Steel Sprocket and 4-1/2″ drum combo
Universal 420 Steel Plate Sprocket 54 Tooth. Mega 212, 3 Bolt 420 Chain, 53t Sprocket DOODLE BUG , MOTOVOX , MEGA MOTO, COLEMAN CT100 Racing Sprockets 50-65 Tooth For #35 Chain
420 Universal Sprocket. Steel Plate Sprocket. 54 Teeth, 2" Bore. Chain Number: 41. 2" center to center bolt pattern. Compatible With The Mega 212. Rear Sprocket, #40/420 Chain, 53 Tooth Count.
High Performance Light Weight Aluminium Speed  Sprockets For #35 Chain. Choose Tooth Size In Options Above. Also Fits Motovox, Monstermoto , Mega Moto., And Doodle Bug
BRAKE DRUM, 4-1/2″ & #35 72 TOOTH SPROCKET, MACHINED ID, ZINC PLATED Martin Sprocket 72T #35 Chain Mega-Moto 212 Pro 38T, 46T, & 60T #420 Chain Performance Sprocket
Precision stamped, one-piece #35 chain, 72 tooth Steel Sprocket and 4-1/2″ drum combo. Martin Sprocket 72T For #35 Chain, Fits all Martin Wheel Hubs And Assemblies. Bolt Circle: 2-13/16", Center Hole: 2", 8" Diameter. !! NEW ITEM !!
Studz Racing Performance This Sprocket To Fit The Mega Moto 212 Pro, The Mega Moto, & The RT200.
The 38T and The 46T Are Great For A TAV Setup, and The 60T Is Essential For Removing A Torque Converter and Switching Over To Straight Chain
Astro Sprocket 60 tooth For #35 Chain 60 Tooth 35 Chain Douglas, VanK Sprocket Chrome 60Tooth Steel Ruttmann Style Sprocket #35 Chain
A Studz Racing Exclusive! This Gear Is Made to Fit The Azusa 6" Astro Wheel 3 Inch Wide Rim.
60 Tooth 35 Chain Lightweight Aluminium Sprocket. Designed For 3 Bolt Pattern On Douglas And VanK Hubs. High Quality Chrome Ruttmann Style 60 Tooth 35 Chain Sprocket With Lightning Holes. Center Bore 1 3/8. Great For 3rd Bearing. 4 Bolt 2-1/8 Spacing.
NOTE: Chrome Plating Is Thicker And can Cause Spacing Issues With Teeth. A Little Filling May Be Required To Fix This Issue
Manco Thunder Bird Sprocket  #420 Chain Murray Track 2 Speed Sprocket 60 Tooth
Manco Thunderbird Sprocket. #420 Chain. Choose Tooth Number From Options Above A Studz Exclusive! Great Top End Upgrade For The Murray Track 2 mini Bike! . Replaces Stock 72 tooth Sprocket with A 60 Tooth Solid Aluminum Sprocket.
