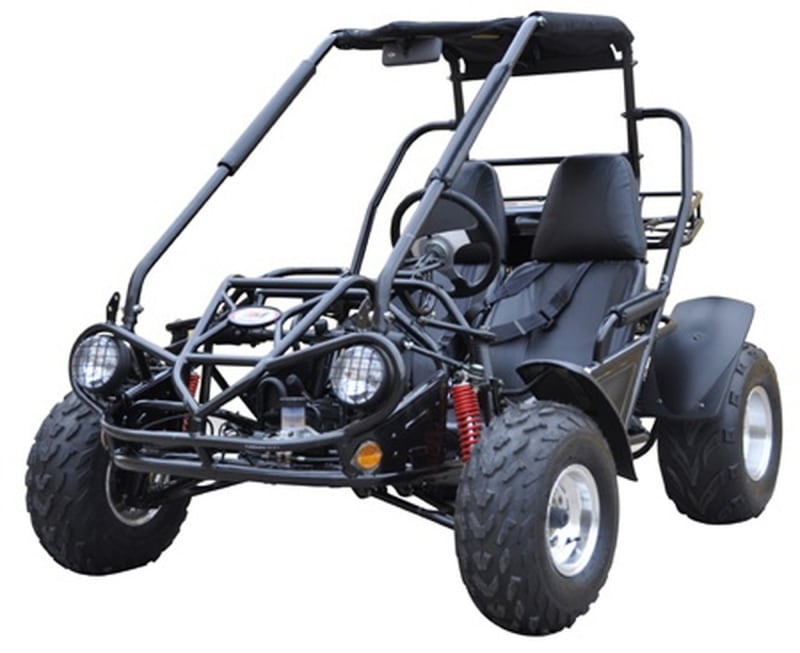

The TrailMaster 200E XRS is an upgrade from the 150XRS, one of our best-selling adult models. The 200E XRS has a bigger 169cc GY6 engine equipped with EFI. With fuel injection, users don’t need to worry about starting in cold weather or at high altitudes; furthermore, users don’t need to fix or replace carburetors after periods of inactivity with the unit. It's packed with great features like a stainless steel performance muffler, rack and pinion steering and adjustable steering wheel, side mirrors and a bikini sunshade top for those sunny days on the trails!
The buggy also comes with bucket seats and five-point safety harnesses. The driver's seat is adjustable from 36 to 43 inches from the back of the seat back to the pedal so it can fit any size driver. The kart's beefy steel wheels feature 20X7-8 front & 21X10-10 tires rear and ride on adjustable heavy-duty shock absorbers and a 4-point rear swing arm for enhanced off-road handling. F&R Hydraulic disc brakes provide huge stopping power. Extra amenities include a parking brake, H&L beam head lights, all-around fenders, trailer hitch and large utility rack.
ENGINE INFORMATION
• EPA certificated
• Engine type: 4-stroke, single cylinder, air cooled
• Displacement: 168.9cc
• Max HP: 11.1hp/8000rpm
• Max torque: 8.1 lb ft/6000rpm
• Bore x stroke: 2.4x2.28 inches• Max speed: 43 mph
• Climbing ability: 18 degrees
• Ignition: ECU
• Starting system: Electric
• Battery: 12V 10Ah
• Engine oil: SAE 15W-40
GENERAL INFORMATION
• Clutch: Automatic CTV with reverse
• Driveline / Driving wheel: Chain / Dual wheel drive
• Suspension F / R: Double A-arm / swing-arm
• Brakes, F / R: Both hydraulic brakes, Disc• Tires, F / R: 20x7-8 / 21x10-10
• Wheel: Steel
• Fuel capacity: 2.25 gal
• Weight, G.W. / N.W.: 573 / 485 lbs
• Max load: 500 lbs
DIMENSION INFORMATION
• Wheelbase: 59 inches
• OA L x W x H: 85x53.1x57.5 inches
• Crate size: 88X48X25 inches
• Shipping weight: 650lbs• Height to seat: 13.8 inches
• Min ground clearance: 6.7 inches
• Pedal to seat back distance: 36” to 43”
KEY FEATURES
• Fuel injection system operates under any weather and at any altitude
• Fully automatic with reverse, high performance 168.9cc GY6 engine with internal F-N-R
• Top Speed over 40 M/H
• Five-point safety seatbelt
• Electric start with kill switch
• Fully automatic with reverse, high performance GY6 engine with internal reverse set up
• Adjustable steering wheel
• Large tires with 20X7-8 in the front and 21X10-10 in the back, steel wheel
• LED head light
• Bikini sunshade top
• Adjustable driver seat: pedal to seat back adjustable from 36” to 43”
• Adjustable heavy duty front and rear shock absorber
• Rack and pinion steering wheel
• Front and rear hydraulic disc brake
• 4-point rear swing arm
• Parking brake
• 4-wheel fenders
• Trailer hitch
• Large rear utility rack
• Large gas tank
