Weld On Mini Bike Axle Hangers For DB30 Doodlebug Minibike Weld-on Live Axle Stretch Bracket Kit Motovox Weld-On Axle Hanger Tabs-Stretch Kit

Weld on mini bike axle hangers specifically designed for the Baja Doodlebug mini bike but can be welded onto many other frames. These hangers are perfect for stretching the wheelbase or changing the ride height of your mini bike! Rigid, stylish, and precise. Take your mini bike to the next level with these axle hangers!

  • Made in the USA out of 3/16" steel plate
  • Axle Hole: 12mm (Can be drilled to fit larger axles)
  • Brake Caliper/Brake Disc Fitment:
  • Use our Mega Moto B212 Rear Hydraulic Brake (Product code MM212RBA )
  • Hole pattern: 8mm holes with a center to center measurement of 2.965"
  • Intended to be used with a 7" brake disc such as our Mini Bike Brake Disc 6 Hole (Product code DB30BRAKEROTOR )

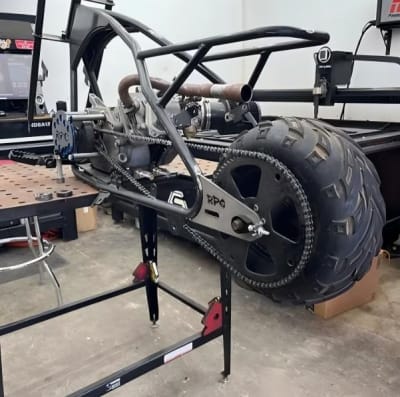

Mini Bike Live Axle Kit. Will work on any frame but was designed exclusively for the Doodlebug, Motovox, and Monster Moto. Moves Wheel Back Approximately 6", and the Bottom Hole is Designed for Wheelie Bar Applications. Also made to fit our Dual Piston Rear Hydraulic Brake Assembly (See pics of bike below for additional examples) Works great for Custom Applications.

*Brackets Are Sold As A PAIR*
Sold as a Pair!! These Weld-On Axle Hanger Tabs are Specifically Designed for The Motovox, But Will Fit other Minibikes. These Heavy Duty Mounts are designed to move the Wheel Back Approximately 6 Inches. Mounts are made to Work with Brakes With 44mm Spacing. Mounts also have a Bottom Hole for Wheelie Bar Applications.

Dimensions:
  • Width: 6 & 1/4"
  • Length: 3/16"
  • Height: 6"
