Piston, GX160, UT2 Flat-Top, .480 Comp, 1.0 mm rings Piston, GX160, UT2 Flat-Top, .480 Comp, 1.0 mm rings

UT2 GX160 Piston, 480 Comp, T3, For use with .080 longer Rods..
CANNOT USE IN UT1 or K SERIES
Rings, Wristpin, and clips are not included. Order separate
For Standard Size, use Ring Set 13010-Z4M-801
Use Oversize Pistons, use Ring Sets 1301X-Z4M-003 or 1301X-Z4K-004
Can also use with the ARC +.080 and +.100 Billet Rods

Our Price: $15.99
Piston, GX200 & GX160, Z4M Flat-Top, 1.0 mm rings (T3) Piston, GX200 & GX160, Z4M Flat-Top, 1.0 mm rings (T3)

OEM Honda, T3 (1.0mm Rings), Short Skirt. Available only in Standard Only
Rings, Wristpin, and clips are not included. Order separate.

Our Price: $19.99
Piston, 212 Predator (70mm), Flat-Top, 70mm, .550 Compression Height Piston, 212 Predator (70mm), Flat-Top, 70mm, .550 Compression Height

70mm Flattop, Std Bore, Includes Rings. Note: Piston has standard (~.550) compression height.
Also fits CH270 Kohler and LCT 208s (on Older LCTs, a Honda Style Rod must be used)
Includes Rings

Our Price: $24.99
Piston, 212 Predator (70mm), Flat-Top, 70mm, .570 Piston, 212 Predator (70mm), Flat-Top, 70mm, .570

70mm Flattop, Std Bore, Includes Rings. Note: Piston has standard (~.570) compression height.

  • Fits 212 Predators and 2.756" Hondas and Clones with 2.756" bores.
  • Use ring set with top .057", 2nd .057", and oil .094"
  • Great with +.020 rods (always check before installing)

Our Price: $24.99
Piston, GX200, Flat Top, Std - Aftermarket Replacement (Chinese) Piston, GX200, Flat Top, Std - Aftermarket Replacement (Chinese)

Chinese OHV Flattop Piston, Std bore only.
Available in kit form (with rings, clips, and wristpin).

Our Price: $24.99
Piston, GX390 Flat Top, Aftermarket, T2 Style (Thick Ring) Piston, GX390 Flat Top, Aftermarket, T2 Style (Thick Ring)

88mm Aftermarket Flat-top Piston for bore GX390s only.
Use our new +.040 longer rod and compression will raise and addition .5 to 1 point (depending on how much head is milled).
Flattop, .040 longer rod, .010 Head Gasket, & Mill head .050 will yield approx. 12.5 to 1
Uses 2.0 thick T2 style Honda Rings.
Rings and Wrist pin Included

Our Price: $40.00
Piston, 92mm for 460s & GX390 Type Engines, Cast Flat Top Piston, 92mm for 460s & GX390 Type Engines, Cast Flat Top

Comes With Piston Rings Included
92mm Diameter
Up to 460cc when used 69mm Stroker cranks

Our Price: $40.00
Tillotson Racing Forged Flat Top Piston, 225RS/72mm Tillotson Racing Forged Flat Top Piston, 225RS/72mm

Forged lightweight flat top piston for our 72mm Tillotson blocks. This is not your run of the mill cheap flat top piston but is closer in quality to the top of the line Wiseco pistons.
  • Wristpin O.D.: .511"
  • Skirt O.D.: 2.831"
  • Total Height: 1.655"
  • This kit comes with the piston, rings, wristpin, and circlips.

Our Price: $49.95

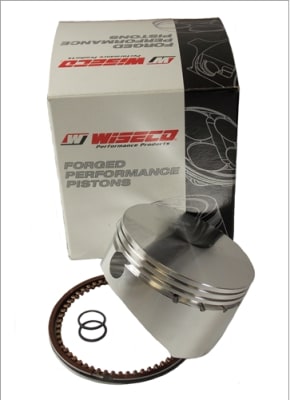

Piston, Forged, Wiseco, 2.815", 3 Ring Piston, Forged, Wiseco, 2.815", 3 Ring

Piston Forged, 2.815 Wiseco .
3 Ring Piston (can not be cut. Must be used with 3.595" Rod)
Bore Size: 2.756
  • Comp Height .640
  • Uses .490 Wrist pin,
  • Requires ARC 3.595 or 3.707 Rod.
  • Includes Rings.
  • Wristpin not included (order seperate).
Largest piston for GX200 that can be used without a Sleeve.

Our Price: $99.99
Piston, Forged, Wiseco, 2.756", 3 Ring Piston, Forged, Wiseco, 2.756", 3 Ring

Piston Forged, 2.756, Wiseco for PREDATOR
3 Ring Piston (can not be cut. Must be used with 3.595" Rod)
  • Bore Size: 2.756
  • Comp Height .640
  • Uses .490 Wrist pin,
  • Requires ARC 3.595 or 3.707 Rod.
  • Includes Rings.
Wristpin not included (order seperate).
When used with 3.595 rod, Piston and rod combo is a drop in - NO CUTTING or HONING REQUIRED!

Our Price: $99.99
Piston, Forged, Wiseco, 2.675" ( GX200 & 6.5 BSP "Clone" ), 3 Ring Piston, Forged, Wiseco, 2.675" ( GX200 & 6.5 BSP "Clone" ), 3 Ring

Piston Forged, 2.675, Wiseco for GX200 & 6.5 Chinese OHVs (does not fit Predators)
3 Ring Piston (cannot be cut. Must be used with 3.595" Rod)
  • Bore Size: 2.675
  • Comp Height .640
  • Uses .490 Wrist pin,
  • Requires ARC 3.595 or 3.707 Rod.
  • Includes Rings.
  • Wristpin not included (order seperate).
When used with 3.595 rod, Piston and rod combo is a drop in - NO CUTTING or HONING REQUIRED!

Our Price: $99.99

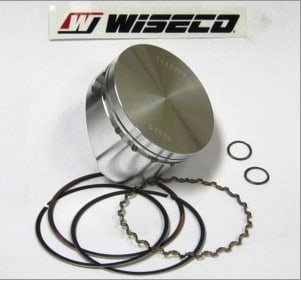

Piston, Forged, Wiseco, 2.815", 2 Ring 72mm Piston, Forged, Wiseco, 2.815", 2 Ring 72mm

Piston Forged, 2.815 Wiseco .
2 Ring Piston (can be cut for 3.707 rod or stroker cranks)
Bore Size: 2.756
  • Comp Height .640
  • Uses .490 Wrist pin,
  • Requires ARC 3.595 or 3.707 Rod.
  • Includes Rings.
  • Wristpin not included (order seperate).
  • Largest piston for GX200 that can be used without a Sleeve.

Our Price: $100.00
Piston, Forged, Wiseco, 2.682", 2 Ring Piston, Forged, Wiseco, 2.682", 2 Ring

Bore Size: 2.682 C
omp Height .640
Uses .490 Wrist pin,
Requires ARC 3.625 (ARC Crank) or 3.707 (stock Crank) Rod.
Includes Rings.
Wristpin not included (order separate)
198 cc with stock stroke 203 cc with .060 stroker crank 214 cc with ARC crank

Our Price: $109.99
Piston, Forged, Wiseco, 2.756" (212 Predator), 2 Ring Piston, Forged, Wiseco, 2.756" (212 Predator), 2 Ring

Piston Forged, 2.756, Wiseco for PREDATOR
2 Ring Piston (Can be cut for 3.707 rod)
  • Bore Size: 2.756
  • Comp Height .640
  • Uses .490 Wrist pin,
  • Requires ARC 3.595 or 3.707 Rod.
  • Includes Rings.
  • Wristpin not included (order seperate).
When used with 3.595 rod, Piston and rod combo is a drop in - NO CUTTING or HONING REQUIRED!

Our Price: $109.99
Piston, Forged, Wiseco, 2.990", 2 Ring Piston, Forged, Wiseco, 2.990", 2 Ring

Piston Dia 2.9865
  • Bore 2.990
  • Comp Height .595
  • Uses .490" Wrist pin
  • Requires ARC 3.595 or 3.707 Rod.
  • Includes Rings.
  • Wristpin not included (order seperate).

Piston may require cutting for proper deck height
Piston

Our Price: $143.99
