Precision machined from Lightweight aluminum. All models have dual patterns for 1/4-28 and 5/16-24 lug bolts on a 3 x 2.5" bolt circle.
FITS 3 BOLT DOUGLAS WHEELS AND VANK.

Ball Bearing Front/Rear Hubs. Standard features include dual sealed ball bearings, standard bolt patterns for 1/4 - 28 and 5/16 - 24 lug bolts and fit 5/8" diameter axles. 3/2.5" bolt circle. Includes Lug Bolts And Nuts. Also Available In Black. Includes 5/8 Precision Bearing.

Martin Offset Wheel Hub 5/8' High Speed Bearing 2 Inch offset 2-13/16' Bolt Circle Made To Fit Martin Wheel 2 Piece Rim (Note: This Includes 5/8" HIGH SPEED Bearings, Not the standard Bearings on most models)

Martin Center Wheel Hub 5/8' High Speed Bearing 2-13/16' Bolt Circle Made To Fit Martin Wheel 2 Piece Rim (Note: This Includes 5/8" HIGH SPEED Bearings, Not the standard Bearings on most models)

Live Axle Hub Assembly 4 Stud With 1' Keyway X 3" Centered

Specs:

• Center Hole Style: Keyed
• Center Hole Inside Diameter: 1"
• Center Hub Bore / Length: 3"
• Mounting Pattern: 2" Horizontal / 3" Diagonal, 4 Bolt

For Use With:

• 3 Piece Wheel Assemblies
• Sprockets

• Double flange wheel hub
• Perfect for split rims.
• Used to space the wheel and sprocket
• (4) 5/16-24 bolts on a 2-13/16" bolt circle.
• 5/8" High Speed Bearings
• Hub Length is 3-1/2"
• Spacing between flanges is 2-9/16"

• Most common style is 1" inner diameter with 3/4" outer diameter. Axle must match (1" axle with a 3/4" step down)
• Used with a straight 3/4" diameter axle, has 3/16" key way
• 1" All The Way Thru has a 1" bore all the way with a 1/4" key way.
• Bearing Type for 1 3/8" OD standard bearing is a bearing type hub for bearing OD of 1 3/8" (standard go-kart bearing)

• Most common style is 1" inner diameter with 3/4" outer diameter. Axle must match (1" axle with a 3/4" step down)

ARC 1" Rear live Axle Hub 4X4 For Douglas 8 Inch Wheels.

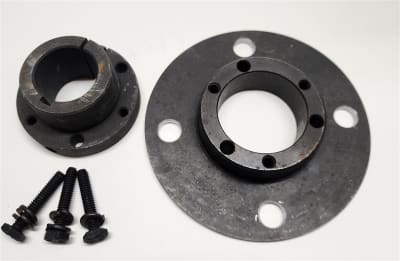

High End Performance 4X4 Wheel Hub. Tapper Lock Design Allows Equal Pressure Around Shaft For Optimal Holding Power. Great For Drag Racing Or Large Horsepower Machines. The Best Hub on The Market. Made in The USA.

High End Performance Douglas Wheel Hub. Tapper Lock Design Allows Equal Pressure Around Shaft For Optimal Holding Power. Great For Drag Racing Or Large Horsepower Machines. The Best Hub on The Market. Made in The USA.
